Set up SAML with Microsoft Entra ID

ECH ECK ECE Self-Managed

This guide provides a walk-through of how to configure Microsoft Entra ID, formerly known as Azure Active Directory, as an identity provider for SAML single sign-on (SSO) authentication, used for accessing Kibana in Elastic Cloud Hosted.

For more information about SAML configuration, refer to:

Follow these steps to configure SAML with Microsoft Entra ID as an identity provider to access Kibana.

  1. Configure the Entra Identity Provider:

    1. Log in to the Azure Portal and navigate to Entra (formerly Azure Active Directory).

    2. Click Enterprise applications and then New application to register a new application.

    3. Click Create your own application, provide a name, and select the Integrate any other application you don’t find in the gallery option.

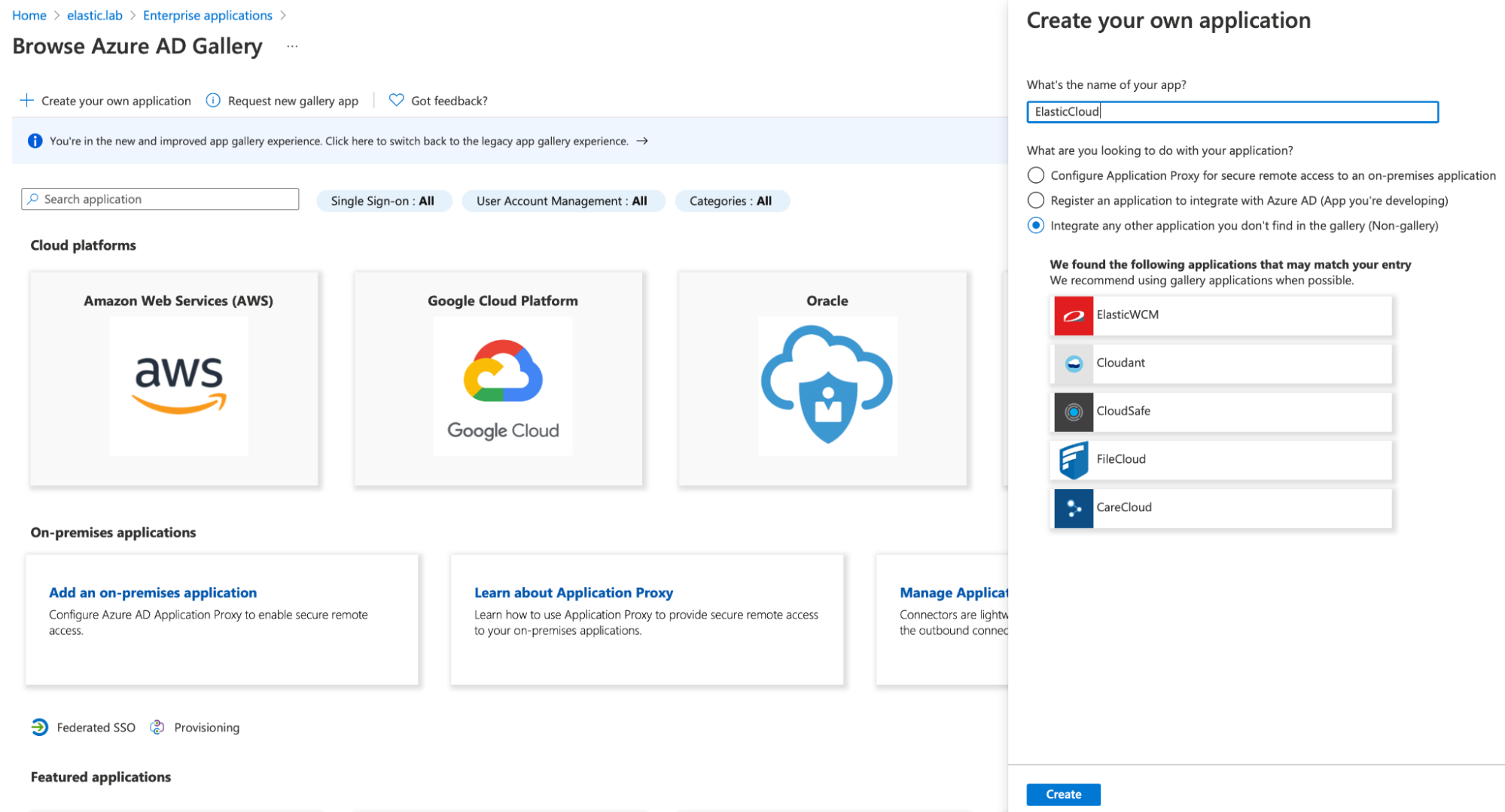

      The Azure Create your own application flyout

    4. Navigate to the new application, click Users and groups, and add all necessary users and groups. Only the users and groups that you add here will have SSO access to the Elastic Stack.

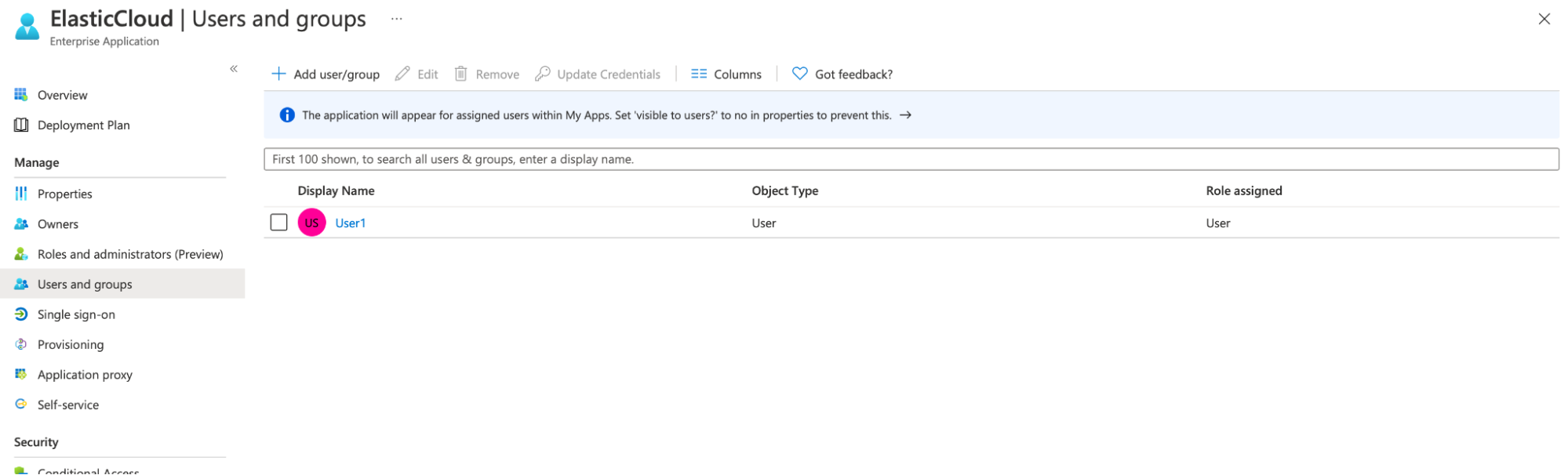

      The Entra User and groups page

    5. Navigate to Single sign-on and edit the basic SAML configuration, adding the following information:

      • Identifier (Entity ID) - a string that uniquely identifies a SAML service provider. We recommend using your Kibana URL, but you can use any identifier.

        For example, https://saml-azure.kb.northeurope.azure.elastic-cloud.com:443.

      • Reply URL - This is the Kibana URL with /api/security/saml/callback appended.

        For example, https://saml-azure.kb.northeurope.azure.elastic-cloud.com:443/api/security/saml/callback.

      • Logout URL - This is the Kibana URL with /logout appended.

        For example, https://saml-azure.kb.northeurope.azure.elastic-cloud.com:443/logout.

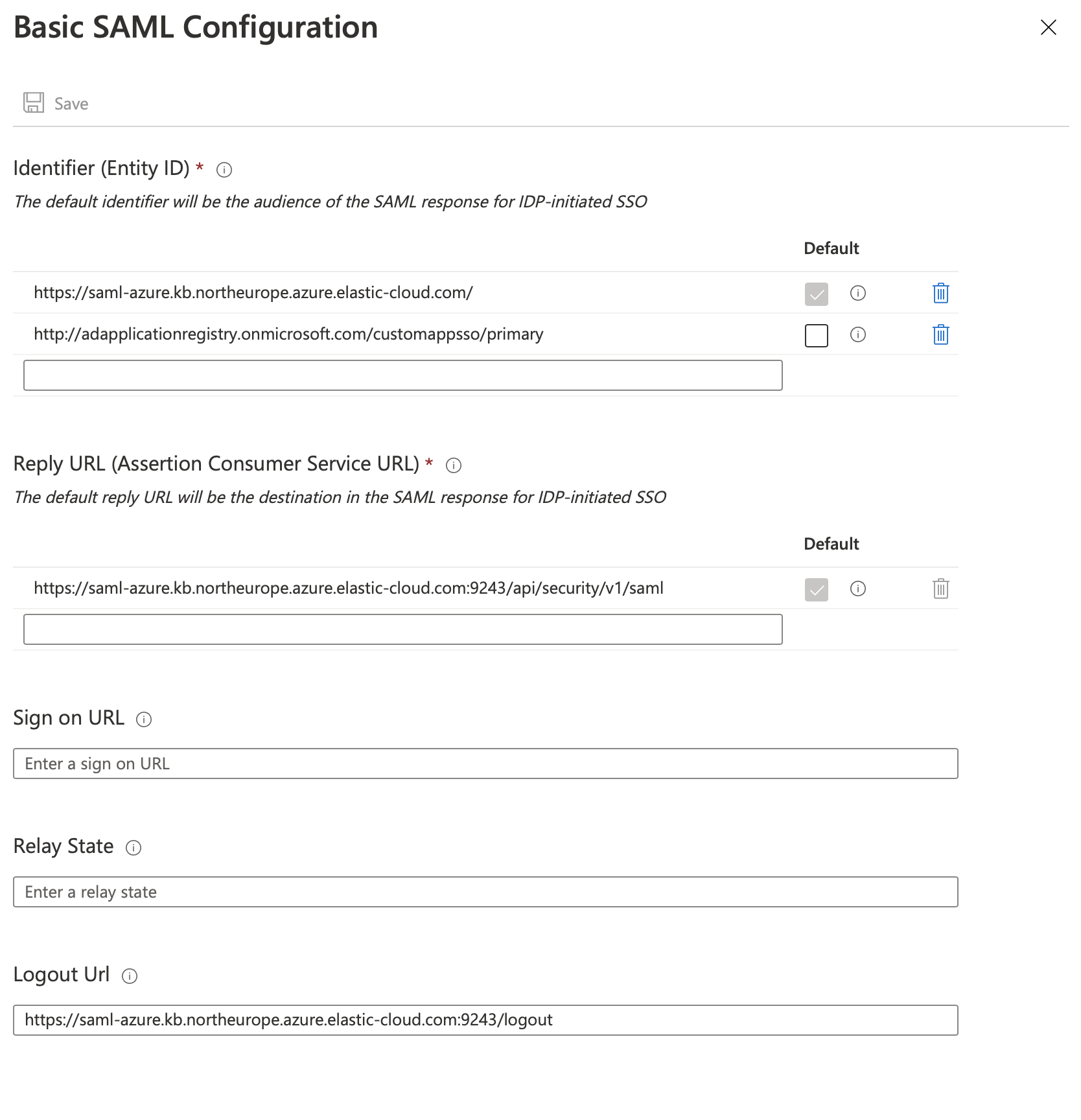

        The Entra SAML configuration page with Kibana settings

    6. Navigate to SAML-based Single sign-on, open the User Attributes & Claims configuration, and update the fields to suit your needs. These settings control what information from will be made available to the Elastic Stack during SSO. This information can be used to identify a user in the Elastic Stack and/or to assign different roles to users in the Elastic Stack. We suggest that you configure a proper value for the Unique User Identifier (Name ID) claim that identifies the user uniquely and is not prone to changes.

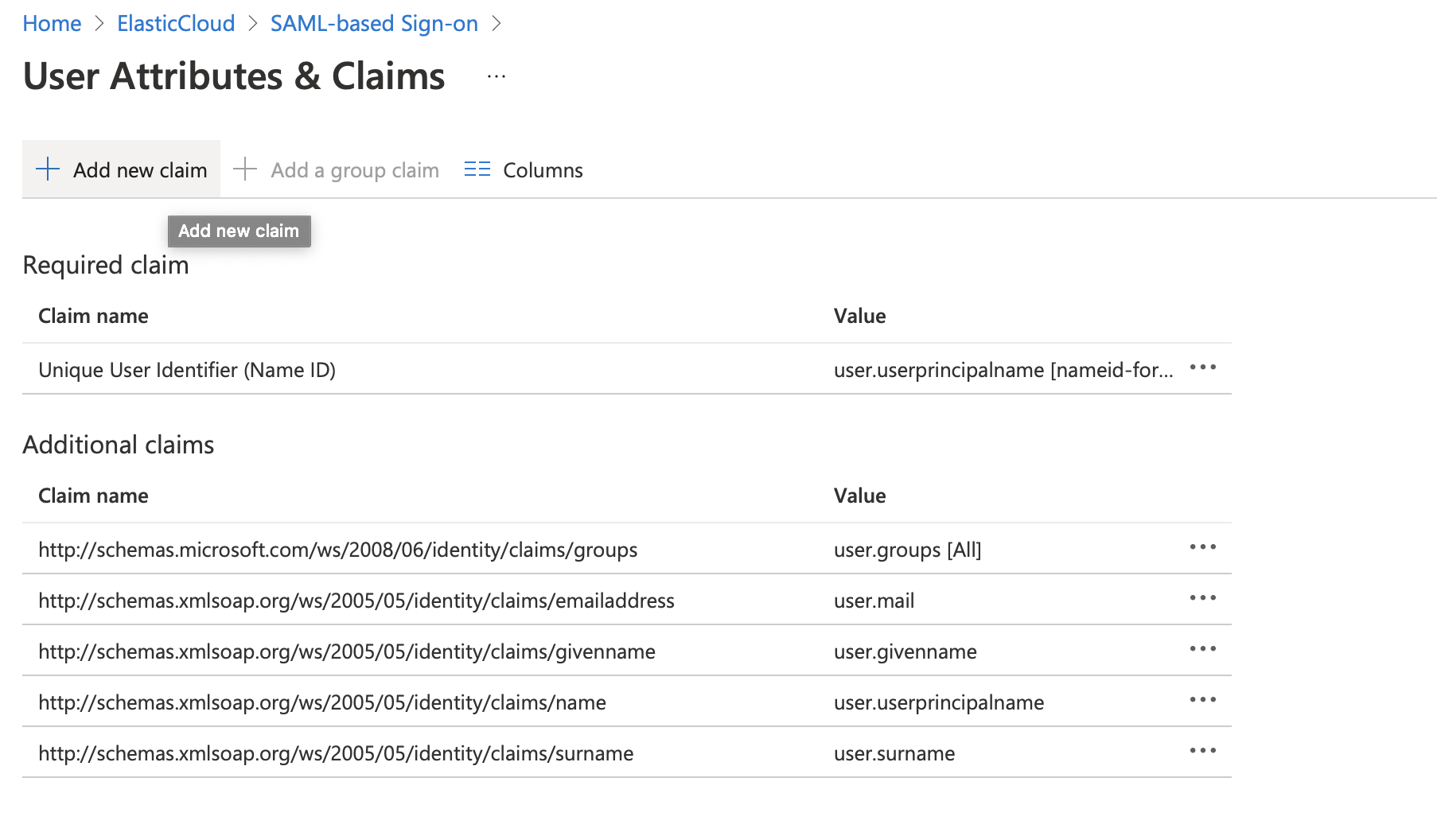

      The Entra ID User Attributes & Claims page

    7. From the SAML configuration page, make a note of the App Federation Metadata URL.

  2. Configure Elasticsearch and Kibana for SAML:

    1. Update your Elasticsearch user settings with the following configuration:

      xpack.security.authc.realms.saml.kibana-realm:
  order: 2
  attributes.principal: nameid
  attributes.groups: "http://schemas.microsoft.com/ws/2008/06/identity/claims/groups"
  idp.metadata.path: "https://login.microsoftonline.com/<Tenant ID>/federationmetadata/2007-06/federationmetadata.xml?appid=<Application_ID>"
  idp.entity_id: "https://sts.windows.net/<Tenant_ID>/"
  sp.entity_id: "<Kibana_Endpoint_URL>"
  sp.acs: "<Kibana_Endpoint_URL>/api/security/saml/callback"
  sp.logout: "<Kibana_Endpoint_URL>/logout"

      Where:

      • <Application_ID> is your Application ID, available in the application details in Azure.

      • <Tenant_ID> is your Tenant ID, available in the tenant overview page in Azure.

      • <Kibana_Endpoint_URL> is your Kibana endpoint, available from the Elastic Cloud Hosted console. Ensure this is the same value that you set for Identifier (Entity ID) in the earlier Microsoft Entra ID configuration step.

      • For idp.metadata.path, we’ve shown the format to construct the URL. This value should be identical to the App Federation Metadata URL setting that you made a note of in the previous step.

      For organizations with many group memberships

      If you configure attributes.groups to read the list of Azure AD groups from the SAML assertion, be aware that users who belong to many groups may exceed Azure AD’s size limit for SAML tokens. In that case, the groups attribute will be omitted.

      To avoid this, enable the Groups assigned to the application option in Azure Entra (App registrations > Token configuration > Edit groups claim). This setting limits the groups attribute in the SAML assertion to only those groups assigned to the application.

      Alternative: If you can’t restrict groups to app-assigned ones, use the Microsoft Graph Authz plugin for Elasticsearch. It looks up group memberships through Microsoft Graph during authorization, so it continues to work even when the groups attribute is omitted due to overage.

      Refer to Group overages in the Microsoft Security documentation for more information.

      If you're using Elastic Cloud Enterprise or Elastic Cloud Hosted, and you're using machine learning or a deployment with hot-warm architecture, you must include this configuration in the user settings section for each node type.

    2. Next, configure Kibana to enable SAML authentication:

      1. Update your Kibana user settings with the following configuration:

        xpack.security.authc.providers:
  saml.kibana-realm:
    order: 0
    realm: kibana-realm
    description: "Log in with Microsoft Entra ID"

        The configuration values used in the example above are:

        xpack.security.authc.providers
        Add saml provider to instruct Kibana to use SAML SSO as the authentication method.
        xpack.security.authc.providers.saml.<provider-name>.realm

        Set this to the name of the SAML realm that you have used in your Elasticsearch realm configuration. For this example, use the realm name that you configured in the previous step: kibana-realm.

      2. Create a role mapping.

        The following role mapping for SAML SSO restricts access to a specific user (email) based on the attributes.principal email address. This prevents other users on the same domain from having access to your deployment. You can remove the rule or adjust it at your convenience.

        POST /_security/role_mapping/SAML_kibana
{
    "enabled": true,
    "roles": [ "superuser" ],
    "rules" : {
      "all" : [
        {
          "field" : {
            "realm.name" : "kibana-realm"
          }
        },
        {
          "field" : {
            "username" : [
              "<firstname.lastname>"
            ]
          }
        }
      ]
    },
    "metadata": { "version": 1 }
}

        For more information, refer to Configure role mapping in the Elasticsearch SAML documentation.

You should now have successfully configured SSO access to Kibana with Microsoft Entra ID as the identity provider.
