Swimlane Turbine
Version 0.4.0 beta:[] (View all)
Compatible Kibana version(s) 8.17.4 or higher
9.0.0 or higher
Supported Serverless project types
What's this?		 Security
Observability
Subscription level
What's this?		 Basic
Level of support
What's this?		 Community

The Swimlane Turbine integration allows you to ingest on-prem audit logs from Swimlane Turbine, the Enterprise AI Hyperautomation & Orchestration Platform.

Use the Swimlane Turbine integration to stream container pod logs into your Elastic deployment.

The Swimlane Turbine integration collects two type of data streams: logs and cel.

Swimlane Audit Logs help logs keep a record of all audit events occurring within both on-premises and cloud environments. These logs provide a comprehensive history of user actions, configuration changes, access attempts, system events, and other critical activities that support security and compliance monitoring. All fields ingested to this data stream are stored under swimlane.audit_log as an event.

Swimlane API help logs keep a record of events happening in Swimlane API which are related to Workspaces, Dashboards, Reports, Application, Applets, Records, Role Based Access Control (RBAC). All fields ingested to this data stream are stored under swimlane.api as an event.

Tenant API help logs keep a record of events happening in Tenant API which are related to Account & Tenant Management, Settings, and Authentication. All fields ingested to this data stream are stored under swimlane.tenant as an event.

Turbine API help logs keep a record of events happening in Turbine API which are related to Connectors, Assets, Sensors, Solutions, Playbook, Schema Definitions, and Components. All fields ingested to this data stream are stored under turbine.api as an event.

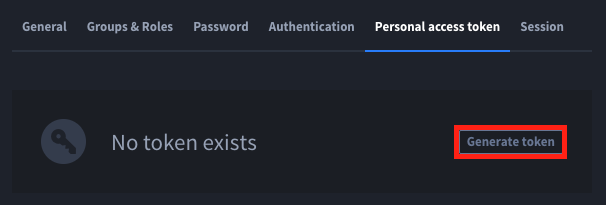

Generate a personal access token for an administrator user. Turbine Cloud Personal Access Token

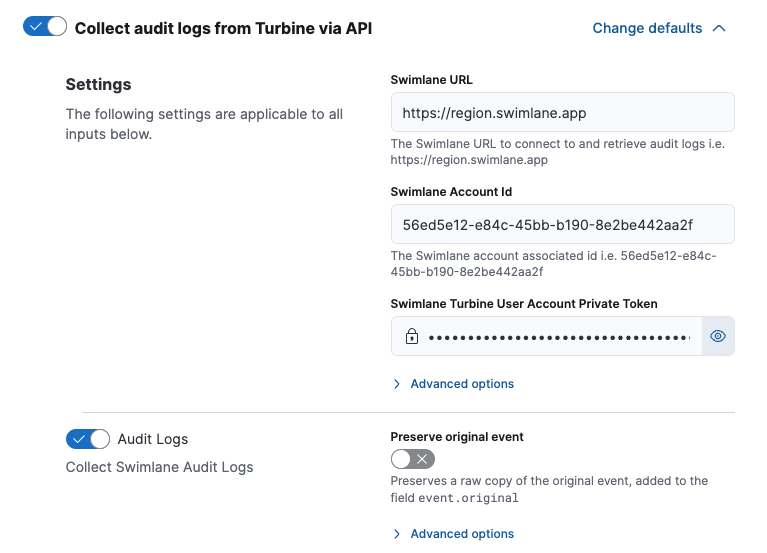

Configure the settings page with your Turbine Cloud URL, Account Id, and Private Token Turbine Cloud Settings

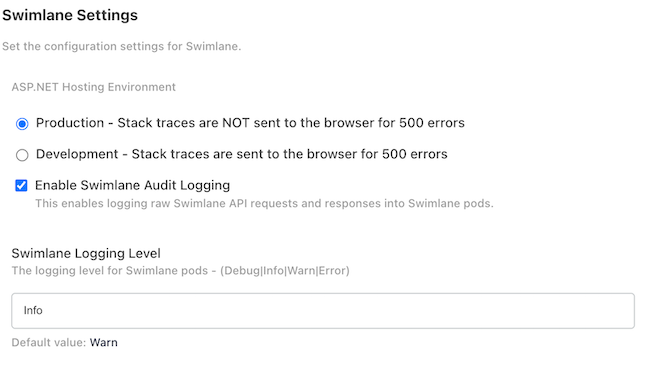

TPI settings can be configured in the administrator dashboard as seen below:

TPI Audit Log Settings

The following environment variables will need to be set for Audit logs to be outputted into the container pod logs.

swimlane-api & swimlane-tenant:
	"SWIMLANE_Logging__Level=Info"
	"SWIMLANE_Logging__IncludeAudit=true"

turbine-api:
	"LOG_LEVEL_API=info"
	"LOG_LEVEL_DEFAULT=info"
	"LOG_LEVEL_SYSTEM=info"
	"LOG_FILES_ENABLED=false"
Example
{
    "@timestamp": "2025-04-23T22:17:40.362Z",
    "agent": {
        "ephemeral_id": "bc351be3-80bf-4251-abfd-0b0313e10026",
        "id": "9da55cfc-0368-44dd-9f29-94d730a7e3b4",
        "name": "elastic-agent-80635",
        "type": "filebeat",
        "version": "8.17.4"
    },
    "cloud": {
        "origin": {
            "account": {
                "id": "01966444-24d9-7a76-b517-3699a780b068"
            },
            "project": {
                "id": "0196648c-68b6-78f0-9f56-e0eea2faa288"
            }
        }
    },
    "data_stream": {
        "dataset": "swimlane.audit_logs",
        "namespace": "42763",
        "type": "logs"
    },
    "ecs": {
        "version": "8.0.0"
    },
    "elastic_agent": {
        "id": "9da55cfc-0368-44dd-9f29-94d730a7e3b4",
        "snapshot": false,
        "version": "8.17.4"
    },
    "event": {
        "agent_id_status": "verified",
        "dataset": "swimlane.audit_logs",
        "ingested": "2025-06-16T22:20:19Z",
        "kind": "event",
        "original": "{\"$type\":\"Core.Models.ElasticAudit.AuditLogSchema, Core\",\"accountId\":\"01966444-24d9-7a76-b517-3699a780b068\",\"actionType\":\"Update\",\"authenticationType\":\"JWT\",\"category\":\"Record\",\"description\":\"admin@domain.tld updated report 68095b8dce404ef1b500f7e8\",\"endpoint\":\"/app/a8FJwIi_XeE5big7m\",\"eventOutcome\":\"Success\",\"eventTime\":\"2025-04-23T22:17:40.362641Z\",\"id\":\"68095b8dce404ef1b500f7e8\",\"isAdmin\":true,\"newValue\":\"{\\\"GroupBys\\\":[],\\\"Aggregates\\\":[],\\\"ApplicationIds\\\":[\\\"a8FJwIi_XeE5big7m\\\"],\\\"Keywords\\\":null,\\\"Columns\\\":[\\\"68095b8dce404ef1b500f7e6\\\"],\\\"Sorts\\\":{\\\"68095b8dce404ef1b500f7e6\\\":1},\\\"Filters\\\":[],\\\"CountByApplicationFacet\\\":false,\\\"PageSize\\\":10,\\\"Offset\\\":0,\\\"DefaultSearchReport\\\":true,\\\"Allowed\\\":[],\\\"Permissions\\\":{},\\\"CreatedDate\\\":\\\"2025-04-23T21:28:45.686Z\\\",\\\"ModifiedDate\\\":\\\"2025-04-23T22:17:40.3466444Z\\\",\\\"CreatedByUser\\\":{\\\"Id\\\":\\\"01966448-16a7-7474-9f83-40b1dd9a2fb2\\\",\\\"Name\\\":\\\"admin@swimlane.com\\\"},\\\"ModifiedByUser\\\":{\\\"Id\\\":\\\"01966448-16a7-7474-9f83-40b1dd9a2fb2\\\",\\\"Name\\\":\\\"admin@swimlane.com\\\"},\\\"ChartOptions\\\":null,\\\"StatsDrillin\\\":null,\\\"FilterType\\\":\\\"And\\\",\\\"ColorCoding\\\":[],\\\"Uid\\\":\\\"default-6bbd7\\\",\\\"Version\\\":4,\\\"Id\\\":\\\"68095b8dce404ef1b500f7e8\\\",\\\"Name\\\":\\\"Default\\\",\\\"Disabled\\\":false}\",\"sourceIp\":[\"81.2.69.144\"],\"tenantId\":\"0196648c-68b6-78f0-9f56-e0eea2faa288\",\"user\":\"admin@domain.tld\",\"userAgent\":\"Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/135.0.0.0 Safari/537.36\",\"userId\":\"01966448-16a7-7474-9f83-40b1dd9a2fb2\"}",
        "outcome": "success",
        "type": [
            "info"
        ]
    },
    "log": {
        "category": "Record"
    },
    "message": "admin@domain.tld updated report 68095b8dce404ef1b500f7e8",
    "related": {
        "user": [
            "admin@domain.tld"
        ]
    },
    "source": {
        "geo": {
            "city_name": "London",
            "continent_name": "Europe",
            "country_iso_code": "GB",
            "country_name": "United Kingdom",
            "location": {
                "lat": 51.5142,
                "lon": -0.0931
            },
            "region_iso_code": "GB-ENG",
            "region_name": "England"
        },
        "ip": "81.2.69.144"
    },
    "tags": [
        "preserve_original_event",
        "forwarded"
    ],
    "url": {
        "path": "/app/a8FJwIi_XeE5big7m"
    },
    "user": {
        "authentication": {
            "type": "jwt"
        },
        "id": "01966448-16a7-7474-9f83-40b1dd9a2fb2",
        "name": "admin@domain.tld"
    },
    "user_agent": {
        "device": {
            "name": "Mac"
        },
        "name": "Chrome",
        "original": "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/135.0.0.0 Safari/537.36",
        "os": {
            "full": "Mac OS X 10.15.7",
            "name": "Mac OS X",
            "version": "10.15.7"
        },
        "version": "135.0.0.0"
    }
}
Exported fields
Field Description Type
@timestamp Event timestamp. date
cloud.account.origin.account.id Cloud Account Id keyword
cloud.account.origin.project.id Cloud Account Project Id keyword
data_stream.dataset Data stream dataset. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
destination.user.changes.id Unique identifier of the user which was modified keyword
destination.user.changes.name Name of the user which was modified keyword
log.category Log Category keyword
log.feature_category Log Feature Category keyword
log.source Log Source keyword
log.type Log Type keyword
source.user.changes.id Unique identifier of the user which made the modification keyword
user.authentication.type The authentication type used by the user for this request keyword
user_agent.original The original user agent string keyword
Example
{
    "@timestamp": "2025-04-10T19:26:36.081Z",
    "agent": {
        "ephemeral_id": "0d2a7069-5df2-49b4-91dc-aef8e1c782f0",
        "id": "95814b2f-7045-4d93-a5a9-eae85b296921",
        "name": "elastic-agent-52619",
        "type": "filebeat",
        "version": "8.17.5"
    },
    "cloud": {
        "origin": {
            "account": {
                "id": "5fbee706-0909-4t1a-ada7-3e8e2a1f3117"
            },
            "project": {
                "id": "5941becf-5ac4-493e-97eb-50da36f80582"
            }
        }
    },
    "data_stream": {
        "dataset": "swimlane.api",
        "namespace": "29410",
        "type": "logs"
    },
    "ecs": {
        "version": "8.17.0"
    },
    "elastic_agent": {
        "id": "95814b2f-7045-4d93-a5a9-eae85b296921",
        "snapshot": false,
        "version": "8.17.5"
    },
    "event": {
        "agent_id_status": "verified",
        "dataset": "swimlane.api",
        "ingested": "2025-05-22T23:29:41Z",
        "kind": "event",
        "outcome": "success",
        "type": [
            "creation"
        ]
    },
    "host": {
        "architecture": "aarch64",
        "containerized": false,
        "hostname": "elastic-agent-52619",
        "ip": [
            "192.168.160.2",
            "172.18.0.4"
        ],
        "mac": [
            "02-42-AC-12-00-04",
            "02-42-C0-A8-A0-02"
        ],
        "name": "elastic-agent-52619",
        "os": {
            "family": "",
            "kernel": "6.8.0-50-generic",
            "name": "Wolfi",
            "platform": "wolfi",
            "type": "linux",
            "version": "20230201"
        }
    },
    "log": {
        "category": "Settings",
        "source": "api",
        "type": "Audit"
    },
    "message": "admin@domain.tld created a new permission",
    "related": {
        "user": [
            "admin@domain.tld"
        ]
    },
    "source": {
        "geo": {
            "city_name": "London",
            "continent_name": "Europe",
            "country_iso_code": "GB",
            "country_name": "United Kingdom",
            "location": {
                "lat": 51.5142,
                "lon": -0.0931
            },
            "region_iso_code": "GB-ENG",
            "region_name": "England"
        },
        "ip": "81.2.69.144"
    },
    "url": {
        "path": "/app/aK_JIlwxET4gA7RWN"
    },
    "user": {
        "authentication": {
            "type": "jwt"
        },
        "id": "1af3bd48-d46e-490f-c015-004d198d0558",
        "name": "admin@domain.tld"
    },
    "user_agent": {
        "device": {
            "name": "Mac"
        },
        "name": "Chrome",
        "original": "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/135.0.0.0 Safari/537.36",
        "os": {
            "full": "Mac OS X 10.15.7",
            "name": "Mac OS X",
            "version": "10.15.7"
        },
        "version": "135.0.0.0"
    }
}
Exported fields
Field Description Type
@timestamp Event timestamp. date
cloud.account.origin.project.id Cloud Account Project Id keyword
data_stream.dataset Data stream dataset. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
destination.user.changes.id Unique identifier of the user which was modified keyword
destination.user.changes.name Name of the user which was modified keyword
log.category Log Category keyword
log.feature_category Log Feature Category keyword
log.source Log Source keyword
log.type Log Type keyword
source.user.changes.id Unique identifier of the user which made the modification keyword
user.authentication.type The authentication type used by the user for this request keyword
user_agent.original The original user agent string keyword
Example
{
    "@timestamp": "2025-04-09T22:09:49.893Z",
    "agent": {
        "ephemeral_id": "9972d741-2798-4f0e-849a-7d6c16ee63a8",
        "id": "b291389f-da6c-4a98-9b4d-6f00deaef4e1",
        "name": "elastic-agent-23448",
        "type": "filebeat",
        "version": "8.17.5"
    },
    "data_stream": {
        "dataset": "swimlane.tenant",
        "namespace": "51350",
        "type": "logs"
    },
    "ecs": {
        "version": "8.17.0"
    },
    "elastic_agent": {
        "id": "b291389f-da6c-4a98-9b4d-6f00deaef4e1",
        "snapshot": false,
        "version": "8.17.5"
    },
    "event": {
        "agent_id_status": "verified",
        "dataset": "swimlane.tenant",
        "ingested": "2025-05-22T23:30:31Z",
        "kind": "event",
        "outcome": "failure",
        "type": [
            "start"
        ]
    },
    "host": {
        "architecture": "aarch64",
        "containerized": false,
        "hostname": "elastic-agent-23448",
        "ip": [
            "192.168.160.2",
            "172.18.0.4"
        ],
        "mac": [
            "02-42-AC-12-00-04",
            "02-42-C0-A8-A0-02"
        ],
        "name": "elastic-agent-23448",
        "os": {
            "family": "",
            "kernel": "6.8.0-50-generic",
            "name": "Wolfi",
            "platform": "wolfi",
            "type": "linux",
            "version": "20230201"
        }
    },
    "log": {
        "category": "Login",
        "level": "INFO",
        "source": "Tenant Service",
        "type": "Audit"
    },
    "message": "Failed login attempt registered for the swimlane user admin@domain.tld, current failed login attempts:1",
    "related": {
        "user": [
            "admin@domain.tld"
        ]
    },
    "source": {
        "geo": {
            "city_name": "London",
            "continent_name": "Europe",
            "country_iso_code": "GB",
            "country_name": "United Kingdom",
            "location": {
                "lat": 51.5142,
                "lon": -0.0931
            },
            "region_iso_code": "GB-ENG",
            "region_name": "England"
        },
        "ip": "81.2.69.144"
    },
    "url": {
        "domain": "turbine.domain.tld",
        "path": "api/users/login"
    },
    "user": {
        "id": "1af3bd48-d46e-490f-c015-004d198d0558",
        "name": "admin@domain.tld"
    },
    "user_agent": {
        "device": {
            "name": "Mac"
        },
        "name": "Chrome",
        "original": "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/135.0.0.0 Safari/537.36",
        "os": {
            "full": "Mac OS X 10.15.7",
            "name": "Mac OS X",
            "version": "10.15.7"
        },
        "version": "135.0.0.0"
    }
}
Exported fields
Field Description Type
@timestamp Event timestamp. date
cloud.account.origin.account.id Cloud Account Id keyword
cloud.account.origin.project.id Cloud Account Project Id keyword
data_stream.dataset Data stream dataset. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
destination.user.changes.id Unique identifier of the user which was modified keyword
destination.user.changes.name Name of the user which was modified keyword
log.category Log Category keyword
log.feature_category Log Feature Category keyword
log.source Log Source keyword
log.type Log Type keyword
source.user.changes.id Unique identifier of the user which made the modification keyword
user.authentication.type The authentication type used by the user for this request keyword
user_agent.original The original user agent string keyword
.
Example
{
    "@timestamp": "2025-04-10T20:32:26.677Z",
    "agent": {
        "ephemeral_id": "6c9536b5-3586-4488-b79c-a03cbf53b9de",
        "id": "e74f511e-2580-4664-ad66-99364b1de05a",
        "name": "elastic-agent-76912",
        "type": "filebeat",
        "version": "8.17.5"
    },
    "cloud": {
        "origin": {
            "account": {
                "id": "5fbee706-0909-4f1a-ada7-3e8e2a1f3117"
            },
            "project": {
                "id": "5941becf-5ac4-493e-97eb-50da36e80582"
            }
        }
    },
    "data_stream": {
        "dataset": "turbine.api",
        "namespace": "49565",
        "type": "logs"
    },
    "ecs": {
        "version": "8.17.0"
    },
    "elastic_agent": {
        "id": "e74f511e-2580-4664-ad66-99364b1de05a",
        "snapshot": false,
        "version": "8.17.5"
    },
    "event": {
        "agent_id_status": "verified",
        "dataset": "turbine.api",
        "ingested": "2025-05-22T23:31:21Z",
        "kind": "event",
        "outcome": "success",
        "type": [
            "creation"
        ]
    },
    "host": {
        "architecture": "aarch64",
        "containerized": false,
        "hostname": "elastic-agent-76912",
        "ip": [
            "192.168.160.2",
            "172.18.0.4"
        ],
        "mac": [
            "02-42-AC-12-00-04",
            "02-42-C0-A8-A0-02"
        ],
        "name": "elastic-agent-76912",
        "os": {
            "family": "",
            "kernel": "6.8.0-50-generic",
            "name": "Wolfi",
            "platform": "wolfi",
            "type": "linux",
            "version": "20230201"
        }
    },
    "log": {
        "category": "Asset",
        "type": "Audit"
    },
    "message": "admin@domain.tld Created asset 67f82ada9deafb2d6ec46987: ECK with Id: 67f82ada9deafb2d6ec46987",
    "related": {
        "user": [
            "admin@domain.tld"
        ]
    },
    "source": {
        "geo": {
            "city_name": "London",
            "continent_name": "Europe",
            "country_iso_code": "GB",
            "country_name": "United Kingdom",
            "location": {
                "lat": 51.5142,
                "lon": -0.0931
            },
            "region_iso_code": "GB-ENG",
            "region_name": "England"
        },
        "ip": "81.2.69.144"
    },
    "url": {
        "path": "/v1/asset"
    },
    "user": {
        "authentication": {
            "type": "jwt"
        },
        "id": "1af3bd48-d46e-490f-b015-004c198d0558",
        "name": "admin@domain.tld"
    },
    "user_agent": {
        "device": {
            "name": "Mac"
        },
        "name": "Chrome",
        "original": "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/135.0.0.0 Safari/537.36",
        "os": {
            "full": "Mac OS X 10.15.7",
            "name": "Mac OS X",
            "version": "10.15.7"
        },
        "version": "135.0.0.0"
    }
}
Exported fields
Field Description Type
@timestamp Event timestamp. date
cloud.account.origin.account.id Cloud Account Id keyword
cloud.account.origin.project.id Cloud Account Project Id keyword
data_stream.dataset Data stream dataset. constant_keyword
data_stream.namespace Data stream namespace. constant_keyword
data_stream.type Data stream type. constant_keyword
destination.user.changes.id Unique identifier of the user which was modified keyword
destination.user.changes.name Name of the user which was modified keyword
log.category Log Category keyword
log.feature_category Log Feature Category keyword
log.source Log Source keyword
log.type Log Type keyword
source.user.changes.id Unique identifier of the user which made the modification keyword
user.authentication.type The authentication type used by the user for this request keyword
user_agent.original The original user agent string keyword
Changelog
Version Details Kibana version(s)
0.4.0 Enhancement (View pull request)
Added support for log collection through API endpoint		 —
0.3.0 Enhancement (View pull request)
Standardize user fields processing across integrations.		 —
0.2.0 Enhancement (View pull request)
Update Kibana constraint to support 9.0.0.		 —
0.1.0 Enhancement (View pull request)
Initial draft of the package.		 —
